7 Inch 1200 x 1920 TFT Tablet LCD Screen Raspberry Pi

Name: 7 Inch 1200 x 1920 TFT Tablet LCD Screen Raspberry Pi
SKU: 811566-1-1-1-1-1
Availability: InStock

Tags: High ppi, Sunlight readable, Tablet Display, UXGA‌

$150.00piece

Add to wishlist

Compare

15 People watching this product now!

Quick Shipping

1-2 days after payment

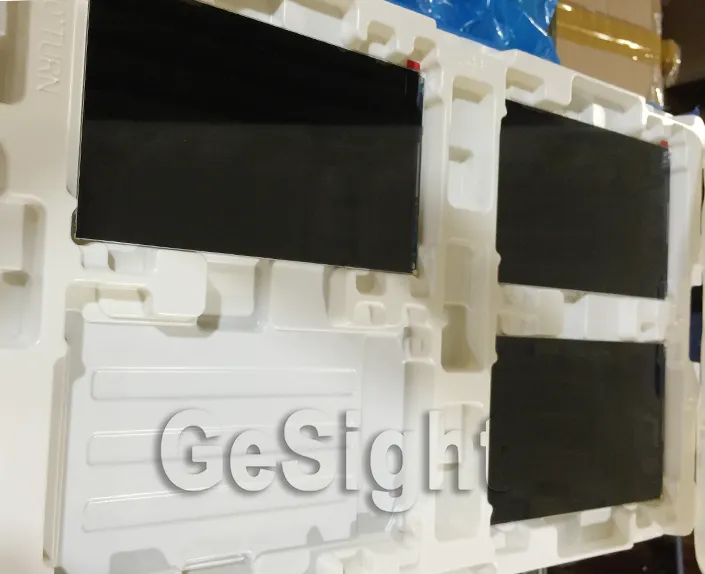

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get Your Exclusive Quotation

Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: LT070ME05000

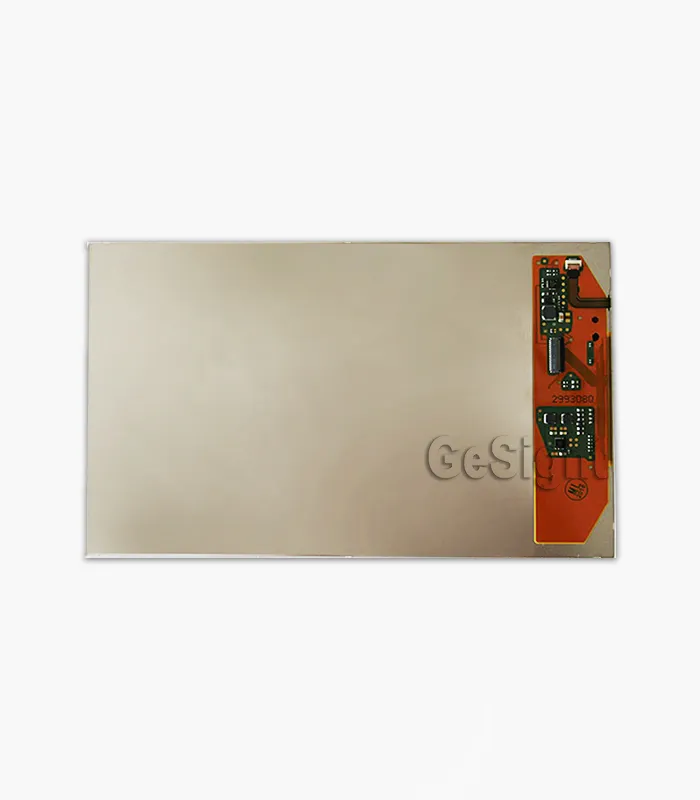

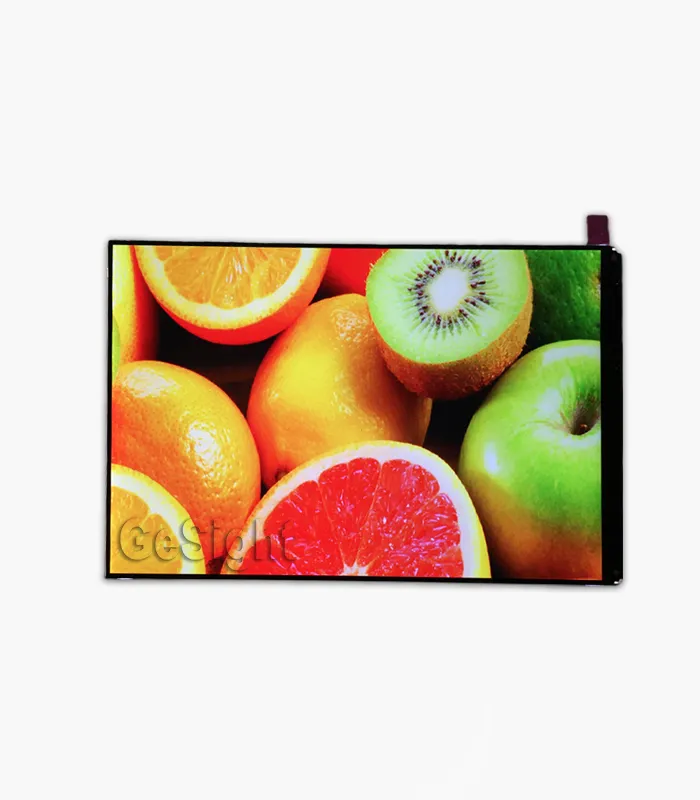

7 Inch 1200×1920 TFT LCD Tablet LCD Screen

This 7 inch TFT LCD displays support superior visual performance, wide viewing angles, and high brightness, ensuring clear, vibrant imagery in any environment. Providing complete controller board solutions, making integration seamless for various applications. To specialized tablet devices, our tablet LCDs are built to meet the demanding requirements of professional use. This combination of a robust controller board and a high-quality IPS TFT LCD ensures a reliable display solution.

Gesight provides customized controller boards supporting HDMI and LVDS interfaces, allowing seamless integration with SBCs for a wide range of display solutions.

Application

Industrial |Outdoor readable display | Public Equipment

Customized Options

FPC | Cover Glass | Controller Board | Raspberry Pi

7 Inch High PPI, Wide Viewing, Low Power, Slim and Lightweight LCD screen

Gesight provides a complete LCD tester for Raspberry Pi projects. for the 7-inch LCD display , providing outstanding high visibility in direct sunlight and other bright outdoor conditions. The 7-inch high PPI tablet LCD screen delivers exceptional clarity and detail, with wide viewing angles and accurate color reproduction for superior visuals. Designed with low power consumption, slim and lightweight construction, and tablet.

Contact us today to receive your HDMI controller board and experience the superior clarity and brightness of our LCD displays.

If you need a customized HDMI controller board or Raspberry Pi for this LCD, also feel free to contact us.

Interfaces Of 7 Inch Tablet TFT LCD Display Module

Power: VDD (3-5V, backlight), VDDp (3-5V, power IC), IOVCC (1.8V logic).
Control: LED_EN (backlight enable), DCDC_EN (power IC enable), XRES (reset, active low).
MIPI DSI: 4-lane differential data (Lane 0-3) + 1 differential clock (high-speed transmission).
Sync Signal: TE (Tearing Effect output).

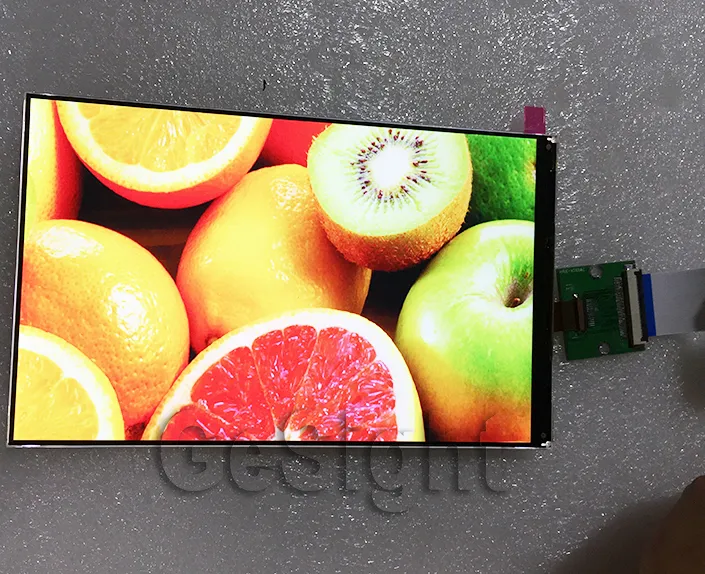

7-inch IPS LCD Panel, Full HD 1920×1200 , Low Power consumption Screen

This 7-inch high PPI LCD screen provides sharp resolution, vibrant colors, and wide viewing angles, making it ideal for tablet applications. Its high pixel density ensures crisp, lifelike images and text for reading, browsing, streaming, and gaming. The display’s low power consumption extends tablet battery life while maintaining consistent brightness and image quality. With a slim and lightweight design, it integrates seamlessly into sleek tablet form factors, enhancing portability and comfort during handheld use. Constructed from durable, high-quality materials, this screen delivers stable, reliable performance even under frequent use, ensuring long-term visual quality. Combining clarity, efficiency, and durability, this 7-inch LCD screen enhances the tablet experience with superior image quality, energy efficiency, and dependable performance.

Specifications

Size	7 inch
Pixels	1200 (H) × 1920 (V) (WUXGA)
Interface	MIPI DSI
Brightness	450 cd/m²
Manufacturer	Gesight
Display Type	IPS LCD , TFT-LCD
Display Mode	Normally Black
Color Depth	16.7 M (8-bit)
Refresh Rate	60Hz
Viewing Angle Range	80/80/80/80 (Typ.)(CR≥10)

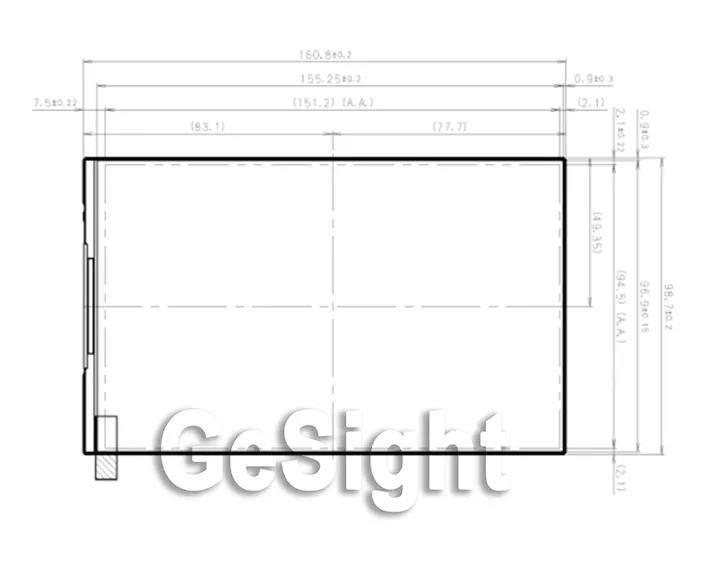

Outline LWH	97.3 mm (W) × 159.4 mm (H)
Active Area L*W	94.5 mm (W) × 151.2 mm (H)
Orientation	Landscape
Build-in Touch IC	Not included
Supply Voltage	1.8/3.0/3.0V (Typ.)(IOVCC/VDD/VDDP)
Operating Temperarure	-10°C ~60°C
Storage Temperature	-30°C ~70°C
Aspect Ratio	5:8 (H:V)

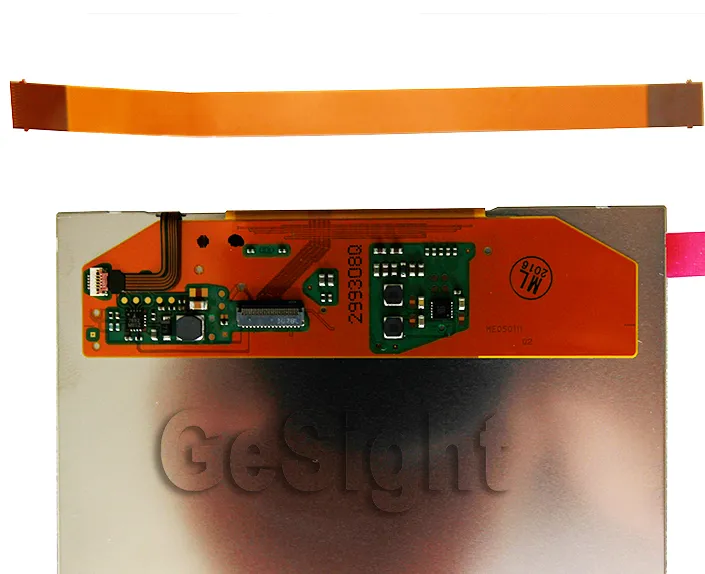

Connection Type	Hirose DF19LA-20P-1H (signal), JST BHR-04VS-1 (backlight)
IC package	COG Built-in ISL97692IRTZ
Touch Panel	Need to make
Sunlight Readable	Yes
Model	LT070ME05000
PPI ( pixels per inch )	323 PPI

Pins Description

Pin	Pin Name	Contents	Direction
1	VDD	LED power supply (3-5V)	Input
2	VDD	LED power supply (3-5V)	Input
3	VDD	LED power supply (3-5V)	Input
4	VDD	LED power supply (3-5V)	Input
5	GND	Ground	-
6	LED_EN	LED backlight enable, High active	Input
7	N.C.	Not connected	-
8	GND	Ground	-
9	MIPI_3N	MIPI data 3 negative signal	Input
10	MIPI_3P	MIPI data 3 positive signal	Input
11	GND	Ground	-
12	MIPI_0N	MIPI data 0 negative signal	In/Output
13	MIPI_0P	MIPI data 0 positive signal	In/Output
14	GND	Ground	-
15	MIPI_CLKN	MIPI CLK negative signal	Input
16	MIPI_CLKP	MIPI CLK positive signal	Input
17	GND	Ground	-
18	MIPI_1N	MIPI data 1 negative signal	Input
19	MIPI_1P	MIPI data 1 positive signal	Input
20	GND	Ground	-
21	MIPI_2N	MIPI data 2 negative signal	Input
22	MIPI_2P	MIPI data 2 positive signal	Input
23	GND	Ground	-
24	XRES	Reset, Low active	Input
25	TE	Tearing effect signal	Output
26	VDDp	Power IC supply (3-5V)	Input
27	VDDp	Power IC supply (3-5V)	Input
28	GND	Ground	-
29	GND	Ground	-
30	DCDC_EN	Power IC supply enable, High active	Input
31	IOVCC	Power supply for LCM (1.8V ± 0.1V)	Input

Electrical Characteristics

Parameter	Symbol	Min	Max	Unit	Remarks
Power supply voltage (Analog)	VDD-GND	-0.3	6.0	V
Power supply voltage (Logic)	IOVCC	-0.3	4.6	V
Input signal voltage (RES)	$V_{I}$	-0.3	IOVCC+0.3	V	XRES pin
Input signal voltage (DSI)	$V_{(D S I)}$	-0.3	1.8	V	MIPI-DSI signals
Input signal voltage (LED)	$V_{(L E D)}$	-0.3	6.0	V	LED_EN pin
Operating temperature	$T_{OP}$	-10	+60	°C	No condensation
Storage temperature	$T_{STG}$	-30	+70	°C	No condensation

See TFT-LCD Collection

From 1.09 inch to 32 inch, all the size you need !

View Collection

FAQ

Where can I buy this display？

If you just need a few samples, it`s better to directly on our Aliexpress store, we are 5 stars feedback supplier with 100% Honesty. (The buy link is on the right of the product image)
For bulk orders, it`s better to contact us and get a better price.

I don`t know which display is suitable for my project

Different displays have different characteristics, just tell Gesight Display your application, and operating environment, Gesight Display will suggest a suitable display for you.

How can I test the display screen?

Gesight Display provide HDMI/Type-C controller board or individual demo kit to test.
The pictures of demo kit can be changed by yourself.

How can I drive the display panel?

Gesight Display will provide necessary specifications for most LCD/OLED on sale, including,
Display Datasheet
Display Drawing
IC Datasheet
Circuit schematic
For most electronics engineers, our specifications are enough to run the display, and we will provide some assistance.
But Gesight Display is not a school, if customers don`t know the basic knowledge to design circuit boards, we suggest using our controller board to drive the display.

Where can I get the cover glass or touch screen for this display panel?

First, you need to check whether this display has On-cell or In-cell touch panel, if has, it only needs to add a cover glass on it. If not, it needs an external touch panel.
(On-cell and In-cell are integrated PCAP touch panels on the display screen)
Because the shape of the cover glass depends on the design of the clients, to avoid infringement of appearance, most of the developers need different customized touch panels.
Gesight Display can provide a customized touch screen with a low cost of tooling charge.

How do Gesight Display ship display panels?

1. UPS/Fedex/DHL/TNT, the best choice for most clients, 3~7 days to arrive.
2. Aliexpress standard ship, this way is cheap and slow, usually take more than 10 days. Only for samples.
3. For Russian clients, EMS or Aliexpress shipment is better.
4. Any designated logistics are acceptable

What`s the quality standard of Gesight Display`s display panels?

Most display panels are from giant manufacturers such as BOE, Sharp, LG, EDO, AUO, etc. They have already tested with strict standards.
For OEM products from Panox Display factory, please check the quality test standards.

What`s the lifetime of these display panels?

The lifetime is different on different images, check the lifetime on datasheet to study it.

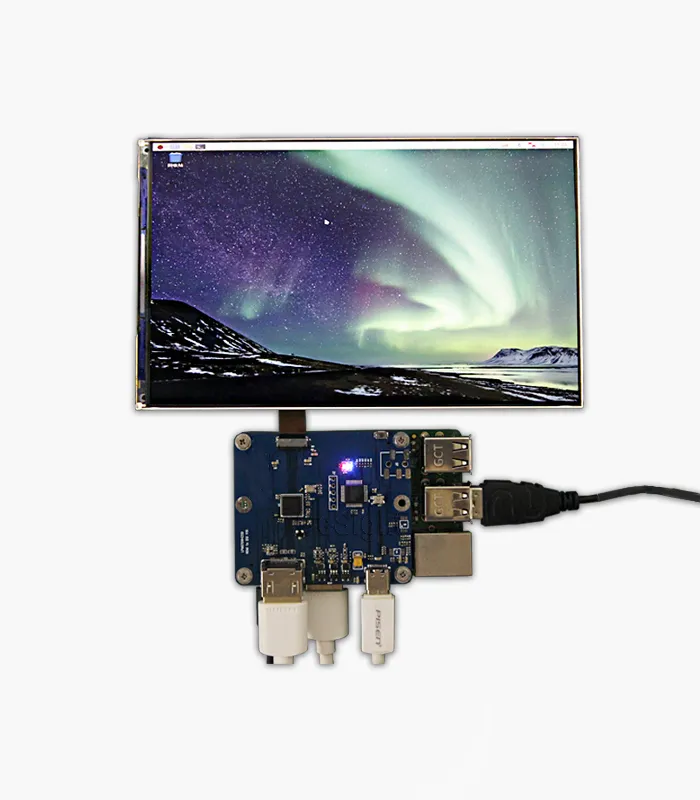

Can I connect this display to Raspberry Pi?

If your Raspberry Pi can support the interface of the display panel, and you know how to program on Raspberry Pi, you can connect to our display.
If you don`t know or don`t want to write a display program on Raspberry Pi, it`s better to get an HDMI controller board from us, and Panox Display will send a config.txt file for reference.

How many days does it take to develop a project?

What is the budget for the project?

Can design edits be made during design time?

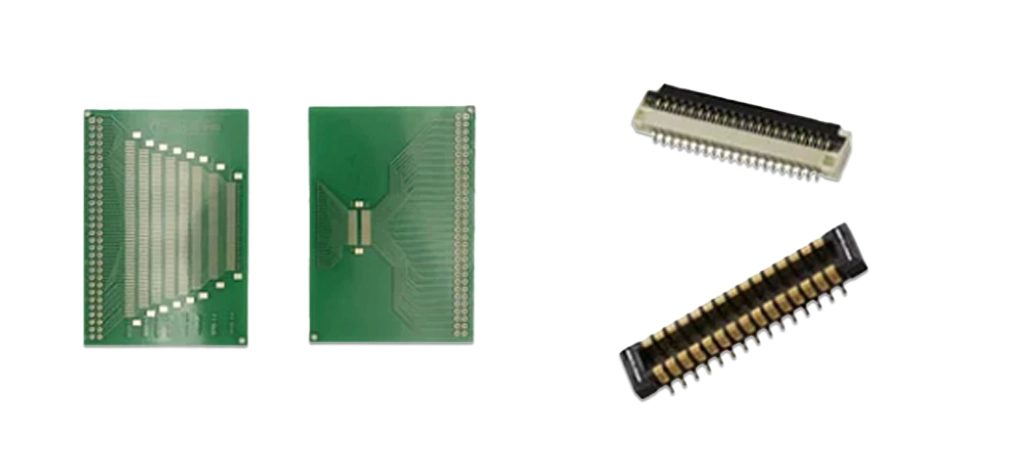

Free convertor board and Connectors

Fast Shipping

Most of our clients are manufacturers purchasing our displays for their applications, who are willing to get samples as soon as possible.

Different products collocations have different package, please confirm the shipping cost with us when place an order.

(4~6 days for most countries and area)

Specification

Panox Display offers the following specifications for most LCD/OLED products:

Display datasheet
Mechanical drawing
IC datasheet
Circuit schematic

TFT-LCD: More Choices for Every Need

Unlike OLED displays, which often have only a few models for each size, the TFT LCD screen market offers a wide variety. After many years of continuous production by Chinese OEM manufacturers, there are countless TFT LCD display options for almost every size, with different resolutions, brightness levels, and specifications. Whether you need high brightness for outdoor use, fine resolution for industrial applications, or cost-effective solutions for consumer products, a TFT LCD module is available to meet your requirements. and vivid image, and consistent display from any angle.

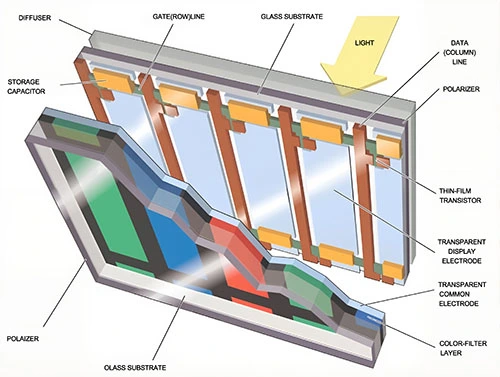

Structure of a TFT-LCD

A TFT-LCD display is made of multiple precise layers, each serving a unique function. Starting from the viewing side, the polarizer controls light polarization, while the first glass substrate supports the color filter layer that creates red, green, and blue subpixels. Beneath this is the transparent common electrode and the transparent display electrode, which work together to control light transmission.

The active layer contains the thin-film transistor (TFT) and storage capacitor, connected through the gate (row) line and source (column) line to drive each pixel. A second glass substrate supports this circuit. Behind the panel, a diffuser spreads light evenly, while the backlight provides the illumination necessary for the display to be visible. Finally, another polarizer fine-tunes light before it exits the screen, ensuring clear, bright images.

By combining these layers into a single TFT-LCD module, manufacturers achieve sharp resolution, accurate colors, and consistent brightness for a wide range of applications.
