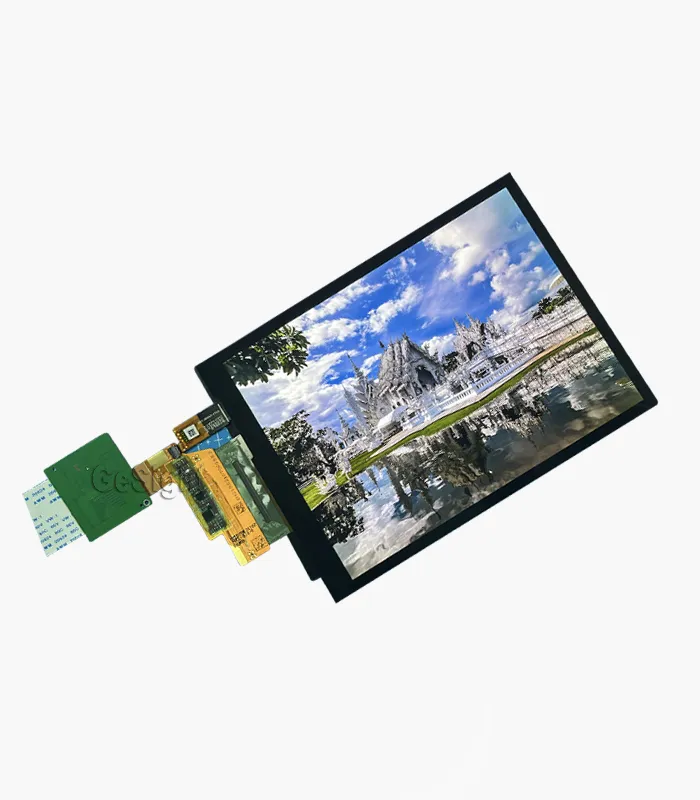

7.8 inch Flexible OLED1440x1920MIPI
7.8inchFlexibleOLED_hdmi_Board
7.8inchFlexible OLED1440x1920 MIPI3

7.8 Inch Flexible OLED 1920 x 1440 Bendable Display MIPI

Tags: , , , , ,

$150.00piece

5000000 in stock (can be backordered)

Add to wishlist
Compare
15 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description
Model: D07802-02

The ROYOLE 7.8-inch Flexible AMOLED Display (Model D07802-02) is a lightweight, ultra-thin, high-resolution panel designed for next-generation foldable and curved smart devices.



Featuring a 1440 × 1920 pixel resolution, 308 PPI density, wide 80° viewing angles, and vibrant 16.7M color output, it delivers exceptional visual performance with smooth 60 Hz refresh. Its flexible architecture supports both inward and outward bending, making it ideal for advanced portable electronics. Integrated MIPI DSI interface and FT3558 touch controller ensure efficient connectivity and precise multi-touch input.



With low power consumption, wide temperature tolerance, and a mass of only 2.7 g, this AMOLED module is optimized for wearables, foldable devices, and innovative display applications.

Application

Flexible / foldable devices, wearable displays, consumer electronics

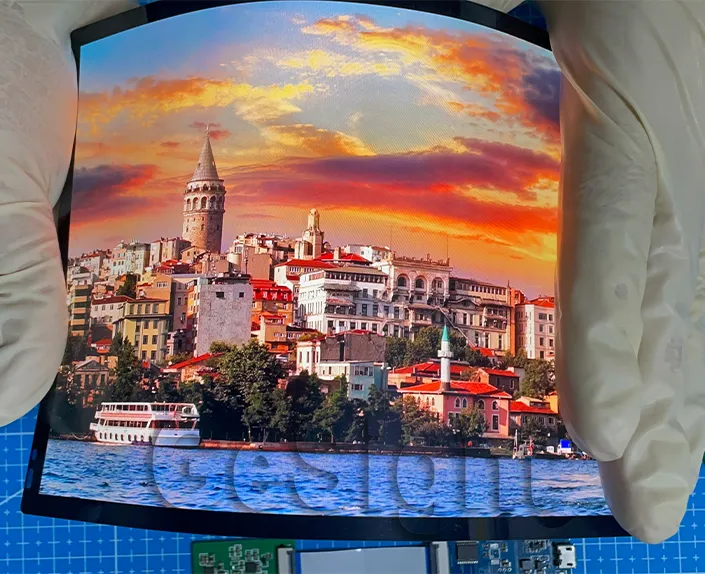

7.8 inchBendable OLED1440x1920 MIPI1
7.8 inchFlexible OLED1440 x 1920MIPI

True Flexible AMOLED Technology

Bendable, ultra-thin AMOLED panel supporting inward and outward curvature for next-generation foldable and wearable devices.

High Resolution & Clarity

Sharp 1440 × 1920 resolution with 308 PPI for crisp text, smooth graphics, and premium visual performance.

Lightweight Open-Cell Design

Weighs only 2.7 grams—ideal for compact, portable, or flexible product integrations.

Wide Viewing Angles

Consistent color and contrast with 80° viewing angles in all directions (U/D/L/R).

Vivid OLED Color Reproduction

16.7M colors with excellent contrast and fast 2 ms response time for smooth motion.

Integrated Touch Panel

Built-in capacitive multi-touch (FT3558 IC) with precise I²C control, reducing external component requirements.

Low Power Consumption

Efficient OLED performance with only 1.77 W at 40% APL for extended battery life in portable devices.

Dual-Port MIPI DSI Interface

High-speed, reliable data transfer for demanding high-resolution display applications.

Wide Temperature Durability

Operates from –20°C to +70°C, suitable for harsh or outdoor environments.

Ideal for Foldable & Next-Gen Devices

Purpose-built for innovative applications such as foldable screens, wearables, instrumentation, and flexible HMI systems.

7.8inchFlexibleOLED_hdmi_Board

Customized Options

Gesight Provide Following Customized Options

#FPC # Backlight #Cover Glass # Touch Panel   #Controller Board

Specifications
Size

7.8 inch
Pixels

1440 × 1920
Interface

Brightness

300 cd/m² (typical)
Manufacturer

Royole Corporation
Display Type

Flexible OLED
Display Mode

Flexible AMOLED
Refresh Rate

60Hz
Viewing Angle Range

80° U / D / L / R (CR ≥ 200)
Outline L*W*H

129.4 × 175.95 × 0.5 mm
Active Area L*W

118.8 × 158.4 mm
Build-in Touch IC

FT3558
Supply Voltage

VDDI 1.8 V, VCI 3.0 V, AVDD 5 V, ELVDD 5.2 V, ELVSS −2.3 V, LVGL −7 V
Consumption

1.77 W @ 40% APL
Operating Temperarure

-30 ~ 70 °C
Storage Temperature

-30 ~ 80 °C
Brightness

Bezel Area (mm)

Not specified
Mass

–
Aspect Ratio

16:9 (H:V)
Connection Type

FPC Zif
IC package

Silicon substrate (Chip on backside)
Sunlight Readable

Yes
Model

ECX335AF
PPI (Pixels Per Inch)

308
Pins Description
Pin Name Description
1 D0_N_A MIPI DSI Data Lane 0 – (Port A)
2 D0_P_A MIPI DSI Data Lane 0 + (Port A)
3 GND Ground
4 D1_N_A MIPI DSI Data Lane 1 – (Port A)
5 D1_P_A MIPI DSI Data Lane 1 + (Port A)
6 GND Ground
7 CLK_N_A MIPI DSI Clock – (Port A)
8 CLK_P_A MIPI DSI Clock + (Port A)
9 GND Ground
10 D2_N_A MIPI DSI Data Lane 2 – (Port A)
11 D2_P_A MIPI DSI Data Lane 2 + (Port A)
12 GND Ground
13 D3_N_A MIPI DSI Data Lane 3 – (Port A)
14 D3_P_A MIPI DSI Data Lane 3 + (Port A)
15 GND Ground
16 D0_N_B MIPI DSI Data Lane 0 – (Port B)
17 D0_P_B MIPI DSI Data Lane 0 + (Port B)
18 GND Ground
19 D1_N_B MIPI DSI Data Lane 1 – (Port B)
20 D1_P_B MIPI DSI Data Lane 1 + (Port B)
21 GND Ground
22 CLK_N_B MIPI DSI Clock – (Port B)
23 CLK_P_B MIPI DSI Clock + (Port B)
24 GND Ground
25 D2_N_B MIPI DSI Data Lane 2 – (Port B)
26 D2_P_B MIPI DSI Data Lane 2 + (Port B)
27 GND Ground
28 D3_N_B MIPI DSI Data Lane 3 – (Port B)
29 D3_P_B MIPI DSI Data Lane 3 + (Port B)
30 GND Ground
31 GND Ground
32 VDD28 2.8 V Power for Touch IC
33 SCL18 Touch I²C Clock (1.8 V)
34 SDA18 Touch I²C Data (1.8 V)
35 RST18 Touch Reset (1.8 V)
36 INT18 Touch Interrupt (1.8 V)
37 SWIRE Power IC Setting Pin
38 AVDD_EN Power IC Enable
39 RESX AMOLED Reset
40 F_CSB De-Mura Flash CS
41 F_SCLK De-Mura Flash Clock
42 F_SDI De-Mura Flash Data In
43 F_SDO De-Mura Flash Data Out
44 F_HOLDN De-Mura Flash Hold
45 F_WPN De-Mura Flash Write Protect
46 F_DISS De-Mura Flash Disable
47 VDDI Digital Power
48 GND Ground
49 VCI Analog Power
50 NC No Connection
51 AVDD Source Driver Analog Power
52 NC No Connection
53 ELVDD OLED Positive Power
54 ELVDD OLED Positive Power
55 ELVDD OLED Positive Power
56 NC No Connection
57 ELVSS OLED Negative Power
58 ELVSS OLED Negative Power
59 ELVSS OLED Negative Power
60 LVGL OLED Negative Gate Voltage
Electrical Characteristics

Power Supply Requirements

Item Symbol Min Typ Max Unit
OLED Positive Supply ELVDD 4.6 5.2 5.2 V
OLED Negative Supply ELVSS –6.4 –2.3 –1.4 V
Negative Gate Voltage LVGL –15 –7 –5 V
Driver Source Output AVDD 4.5 5.0 8.0 V
Digital Power VDDI 1.62 1.8 1.98 V
Analog Power VCI 2.7 3.0 3.6 V

Input Signal Levels (1.8 V Domain)

Parameter Symbol Min Max Unit
High Level VIH 0.7 × VDDI VDDI V
Low Level VIL 0 0.3 × VDDI V

Current Consumption

(All measured @ white pattern, 25°C)

Supply Symbol Typ Unit
AVDD IAVDD 49 mA
VCI IVCI 2.5 mA
VDDI IVDDI 40.2 mA
ELVDD IELVDD 317 mA
ELVSS IELVSS 317 mA
LVGL ILVGL 0.67 mA
