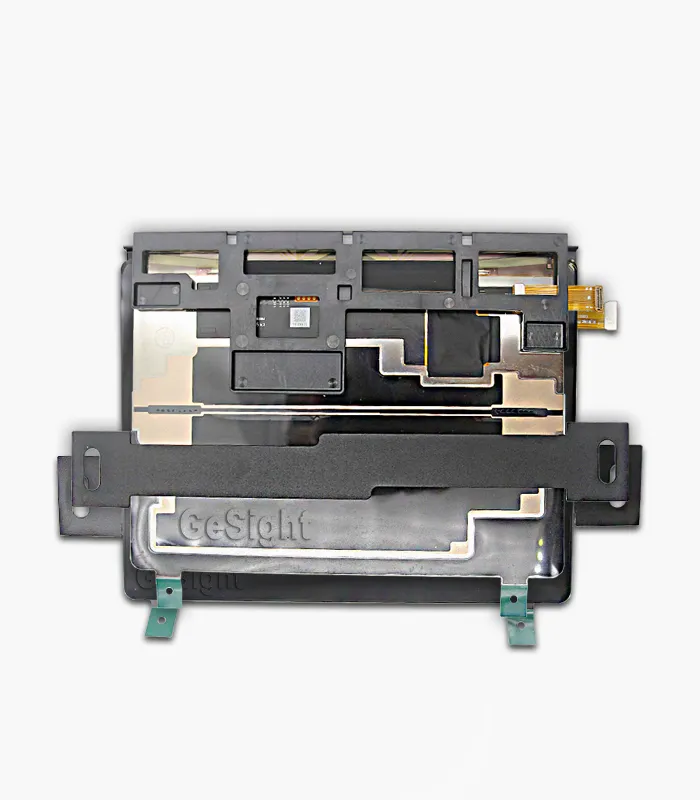

AMOLED rear view backside components

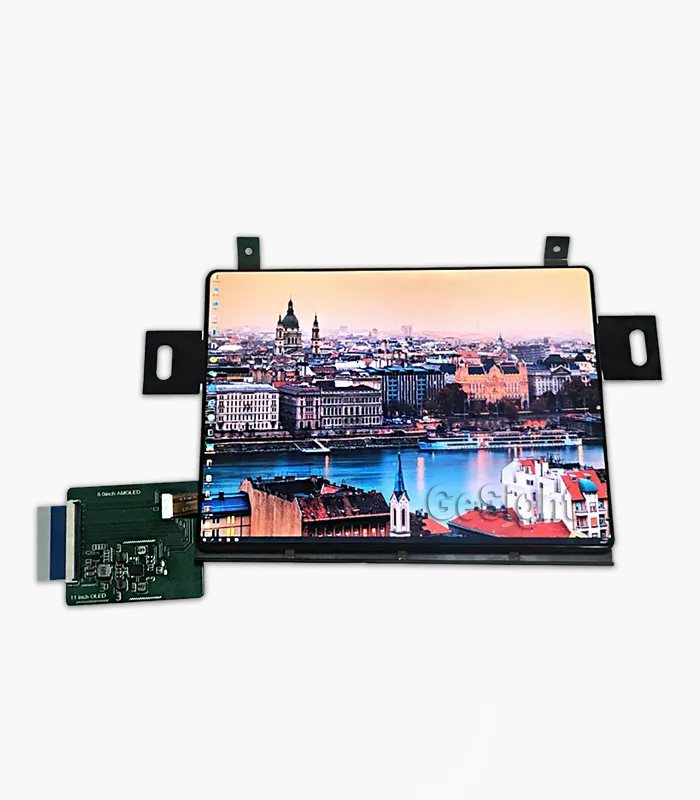

AMOLED front view white background
Click to enlarge
8.01-inch bendable AMOLED front view flower demo
AMOLED screen off front view
AMOLED rear view backside components
AMOLED front view white background

8.01-inch 2480×1860 Flexible/Bendable AMOLED Display

Tags: , , , , , ,

$200.70piece

Add to wishlist
Compare
12 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: PF801FM2480C

The 8.01-inch Flexible/Bendable AMOLED Display delivers crisp, high-density visuals in a compact 4:3 format, featuring a 2480 × 1860 (SPR) resolution and an ultra-fine 387 PPI for clean UI detail and smooth gradients. With 430 nits (typ) brightness and up to 600 nits (HBM typ) plus 16.7M colors, it provides vibrant color performance for premium curved and bendable product designs.

The module uses a MIPI interface and supports a 60 Hz refresh rate. It maintains wide viewing performance rated at CR @ 80° = 1000:1 (U/D/L/R) for consistent contrast across different angles. Its 165.89 × 126.12 × 0.778 mm (typ) outline and 162.688 × 122.016 mm active area help streamline integration in space-conscious designs. Touch is integrated as on-cell with a built-in FST1BA80YA2 touch IC (SPI), and the display uses the RM69380 driver IC with NT50379 power IC via an FPC connection (connector type 5052744042). Gesight supplies this module for dependable real-world use with a -30 to +70℃ operating range and a -40 to +80℃ storage rating.

Application

Curved UI Devices | Portable Terminals | Embedded HMI | Demo & Evaluation Setups

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

outline drawing dimensions mechanical

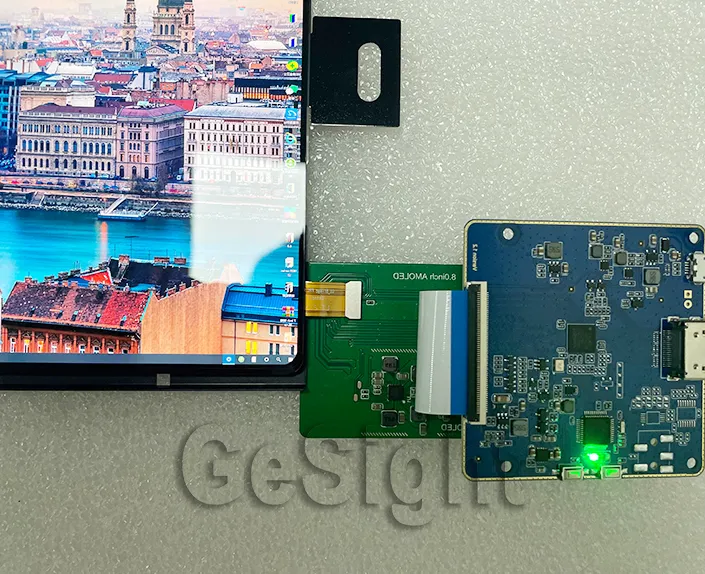

8.01-inch bendable AMOLED demo HDMI board

HDMI Controller Board for PF801FM2480C Integration

To simplify prototyping and video input evaluation, PF801FM2480C can be paired with an HDMI controller board that converts standard HDMI signals into the panel’s MIPI display interface. This setup is ideal for quick bring-up, demo content playback, and system validation without building a full custom motherboard. The board-to-panel connection is made through an FPC cable, keeping wiring clean and reducing integration time in early-stage projects.

With the controller board, engineers can focus on testing image quality, touch response, and system stability in real working conditions, while also speeding up firmware and UI verification. It’s a practical path from lab evaluation to product integration, especially for curved or bendable enclosure concepts.

Gesight provides HDMI controller boards to support PF801FM2480C evaluation and development.

Vivid Color Performance on a Bendable Curved Form

PF801FM2480C is built to look premium even when it’s flexed into a curved shape. The bendable AMOLED panel maintains clean detail and stable contrast across the viewing area, so UI elements stay sharp while photos and video remain rich and saturated. With 2480×1860 resolution and 16.7M colors, it renders fine edges, smooth gradients, and high-impact color in a compact 4:3 format.

The curved form factor also helps designers explore wrapped interfaces and contour-friendly enclosures without sacrificing visual quality. Whether you’re validating a curved housing concept or testing real content on a bent screen, PF801FM2480C delivers a consistent, vivid picture that stays impressive from multiple angles.

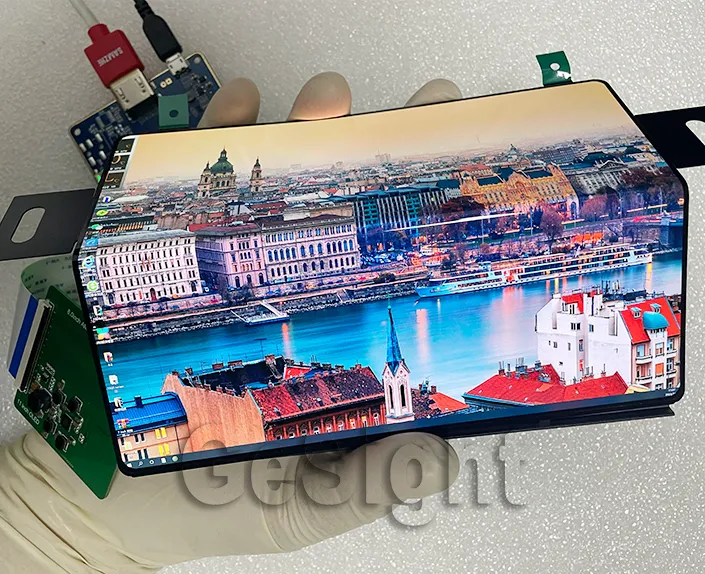

handheld curved AMOLED bendable display
Specifications
Size

8.01 inch
Pixels

2480 × 1860 (SPR)
Interface

,

Brightness

430 nits (typ, complete machine); 600 nits (HBM typ, complete machine)
Manufacturer

Gesight
Display Type

Flexible OLED
Display Mode

AMOLED
Color Depth

Refresh Rate

60 Hz
Viewing Angle Range

Up/Down/Right/Left: CR @ 80 degree = 1000 : 1
Outline L*W*H

165.89 × 126.12 × 0.778 mm (typ)
Active Area L*W

162.688 × 122.016 mm
Orientation

Supply Voltage

VCI 3.0 V (typ); VDDIO 1.8 V (typ); AVDD 7.6 V (typ); ELVDD 4.6 V (typ); ELVSS: Normal -3.3 V / HBM -4.0 V / AOD -2 V
Consumption

Display current (typ, 60 Hz, white pattern): Normal/430 nits — AVDD 38.08 mA; VCI 10.58 mA; VDDIO 117.97 mA; ELVDD 451.78 mA; ELVSS 423.01 mA. HBM/600 nits — AVDD 37.48 mA; VCI 10.52 mA; VDDIO 118.73 mA; ELVDD 619.09 mA; ELVSS 618.89 mA
Operating Temperarure

−30 to +70 °C
Storage Temperature

−40 to +80 °C
Bezel Area (mm)

long-side bezel 1.601 mm each side; short-side bezel 2.052 mm each side
Aspect Ratio

4:3
Connection Type

FPC connector; Connector Type: 5052744042
IC package

Driver IC: COP; Touch IC: FPC
Touch Panel

Pixel Pitch

0.0656 mm
Sunlight Readable

–
Model

PF801FM2480C
PPI ( pixels per inch )

387.0 PPI
Application

Folding / Flexible AMOLED module (panel)
Pins Description
Pin No. Symbol I/O Description Notes
1 AVDD P Power Supply Input for Analog Circuit
2 ELVSS P AMOLED Negative Power Supply
3 NC1 - Not Connected
4 ELVSS P AMOLED Negative Power Supply
5 VCI P Power Supply Input for Analog Circuit
6 ELVSS P AMOLED Negative Power Supply
7 NC2 - Not Connected
8 NC3 - Not Connected
9 IOVCC P Power Supply Input for Digital Circuit
10 GND P Ground
11 VPP P - Not Connected or Connect to GND if not used
12 NC4 - Not Connected
13 MIPI_D2P I DSI-D2 Positive Differential Data Signals of MIPI
14 AVDD_EN O AVDD_EN Signal for PMIC
15 MIPI_D2N I DSI-D2 Negative Differential Data Signals of MIPI
16 SWIRE O - Swire Signal for PMIC
17 GND P Ground
18 RESET I RESET FOR DIC
19 MIPI_D1P I DSI-D1 Positive Differential Data Signals of MIPI
20 ESD_FLAG O Error Flag For Detect IC Status
21 MIPI_D1N I DSI-D1 Negative Differential Data Signals of MIPI
22 TE I DIC TE Signal
23 GND P Ground
24 ID I Hardware Detect ID
25 MIPI_CLKP I DSI-CLK Positive Differential Data Signals of MIPI
26 TP_RST I Touch Reset Pin
27 MIPI_CLKN I DSI-CLK Negative Differential Data Signals of MIPI
28 TP_SPI_MOSI I Touch SPI Interface, Data Pin
29 GND P Ground
30 TP_SPI_MISO I/O Touch SPI Interface, Data Pin
31 MIPI_D0P I/O DSI-D0 Positive Differential Data Signals of MIPI
32 TP_SPI_CS I/O Touch SPI Interface, Chip Select
33 MIPI_D0N I/O DSI-D0 Negative Differential Data Signals of MIPI
34 TP_SPI_SCK I/O Touch SPI Interface, Clock Pin
35 GND P Ground
36 TP_INT I/O TP Interrupt
37 MIPI_D3P I DSI-D3 Positive Differential Data Signals of MIPI
38 TP_1V8 P Power Supply Input for TP Digital Circuit
39 MIPI_D3N I DSI-D3 Negative Differential Data Signals of MIPI
40 TP_3V3 P Power Supply Input for TP Analog Circuit
41 ELVDD P AMOLED Positive Power Supply
42 ELVDD P AMOLED Positive Power Supply
43 ELVDD P AMOLED Positive Power Supply
44 GND P Ground
45 GND P Ground
46 GND P Ground



Electrical Characteristics

Electrical Characteristics

Item Symbol Condition Min. Typ. Max. Unit Remark
ELVDD ELVDD - 4.55 4.60 4.65 V Controlled by DDIC; VINA=VINP=2.9V to 4.8V; No load
ELVSS (Normal) ELVSS - -3.27 -3.30 -3.33 V
ELVSS (HBM) ELVSS - -4.04 -4.00 -3.96 V
AVDD AVDD - 7.52 7.60 7.68 V
VCI VCI - 2.65 3.00 4.80 V
VDDIO VDDIO - 1.65 1.80 1.95 V
Current Consumption (Normal/430 nits) AVDD Frame f=60Hz; White pattern 34.69 38.08 40.92 mA Note1: Average of 30pcs Module Panel
VCI Frame f=60Hz; White pattern 10.31 10.58 10.92 mA
VDDIO Frame f=60Hz; White pattern 114.6 117.97 121.86 mA
ELVDD Frame f=60Hz; White pattern 423.25 451.78 451.78 mA
ELVSS Frame f=60Hz; White pattern -423.01 423.01 451.46 mA
Current Consumption (HBM/600 nits) AVDD Frame f=60Hz; White pattern 34.74 37.48 40.65 mA Note1: Average of 30pcs Module Panel
VCI Frame f=60Hz; White pattern 10.23 10.52 10.93 mA
VDDIO Frame f=60Hz; White pattern 115.03 118.73 122.68 mA
ELVDD Frame f=60Hz; White pattern 597.62 619.09 635.23 mA
ELVSS Frame f=60Hz; White pattern 597.41 618.89 635.15 mA
Touch DC TP_VDD - 2.7 3.3 3.6 V
Touch DC TP_VDDIO - 1.65 1.8 1.95 V
Touch Power Consumption - Active With no finger 72.0 77.3 78.9 mW Note1: Average of 30pcs Module Panel
- Active With one finger 81.5 81.7 81.9 mW
- Idle Mode 5.7 9.9 12.3 mW
- Sleep Mode 0.4 0.4 0.4 mW
- Gesture Mode 5.0 7.2 8.4 mW





Backlight Specification

Item Specification
Backlight N/A (AMOLED, no backlight)

FAQ

Where can I buy this display？

If you just need a few samples, it`s better to directly on our Aliexpress store, we are 5 stars feedback supplier with 100% Honesty. (The buy link is on the right of the product image)
For bulk orders, it`s better to contact us and get a better price.

Different displays have different characteristics, just tell Gesight Display your application, and operating environment, Gesight Display will suggest a suitable display for you.

Gesight Display provide HDMI/Type-C controller board or individual demo kit to test.
The pictures of demo kit can be changed by yourself.

Gesight Display will provide necessary specifications for most LCD/OLED on sale, including,
Display Datasheet
Display Drawing
IC Datasheet
Circuit schematic
For most electronics engineers, our specifications are enough to run the display, and we will provide some assistance.
But Gesight Display is not a school, if customers don`t know the basic knowledge to design circuit boards, we suggest using our controller board to drive the display.

First, you need to check whether this display has On-cell or In-cell touch panel, if has, it only needs to add a cover glass on it. If not, it needs an external touch panel.
(On-cell and In-cell are integrated PCAP touch panels on the display screen)
Because the shape of the cover glass depends on the design of the clients, to avoid infringement of appearance,  most of the developers need different customized touch panels.
Gesight Display can provide a customized touch screen with a low cost of tooling charge.

1. UPS/Fedex/DHL/TNT, the best choice for most clients, 3~7 days to arrive.
2. Aliexpress standard ship, this way is cheap and slow, usually take more than 10 days. Only for samples.
3. For Russian clients, EMS or Aliexpress shipment is better.
4. Any designated logistics are acceptable


Most display panels are from giant manufacturers such as BOE, Sharp, LG, EDO, AUO, etc. They have already tested with strict standards.
For OEM products from Panox Display factory, please check the quality test standards.

The lifetime is different on different images, check the lifetime on datasheet to study it.

If your Raspberry Pi can support the interface of the display panel, and you know how to program on Raspberry Pi, you can connect to our display.
If you don`t know or don`t want to write a display program on Raspberry Pi, it`s better to get an HDMI controller board from us, and Panox Display will send a config.txt file for reference.
