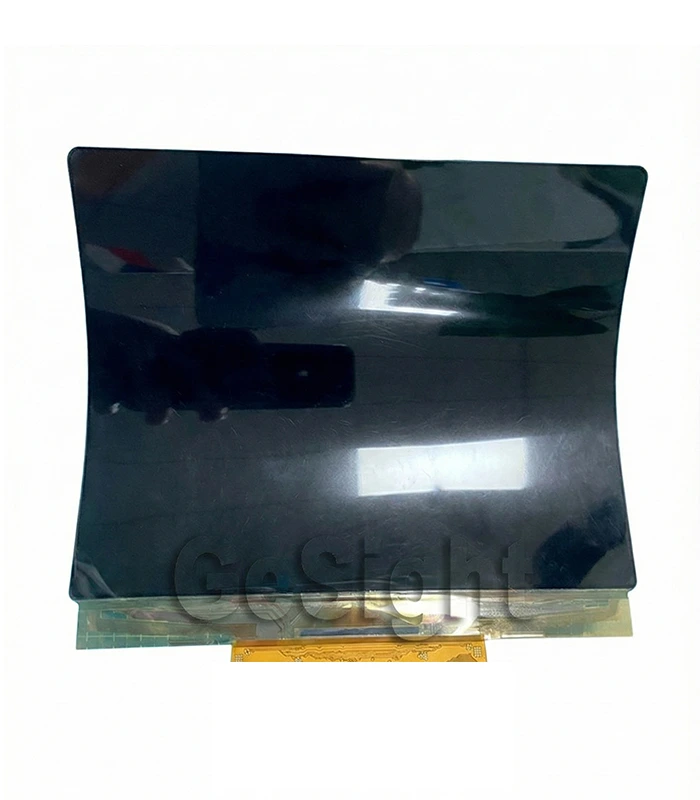

flexible AMOLED bending test display on

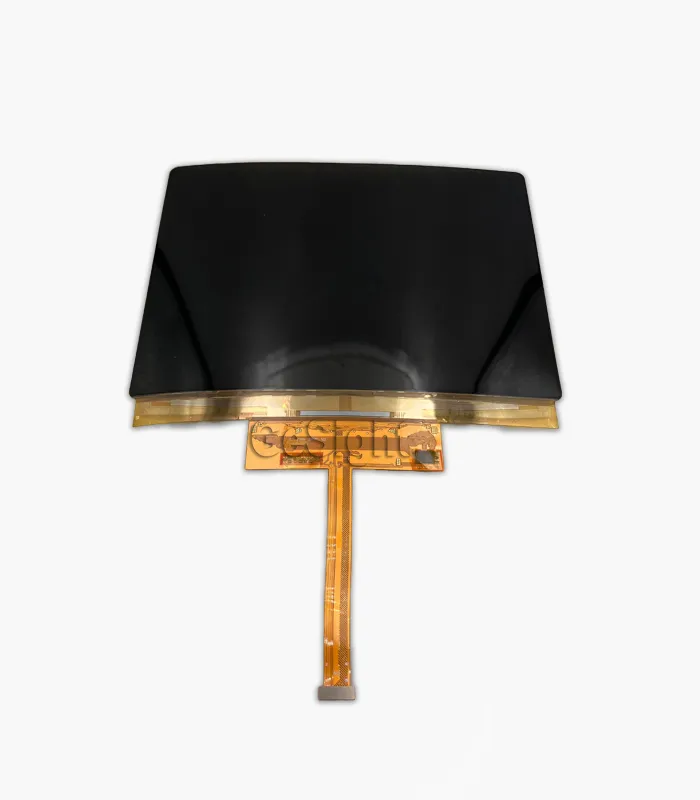

flexible bendable AMOLED front view curved screen

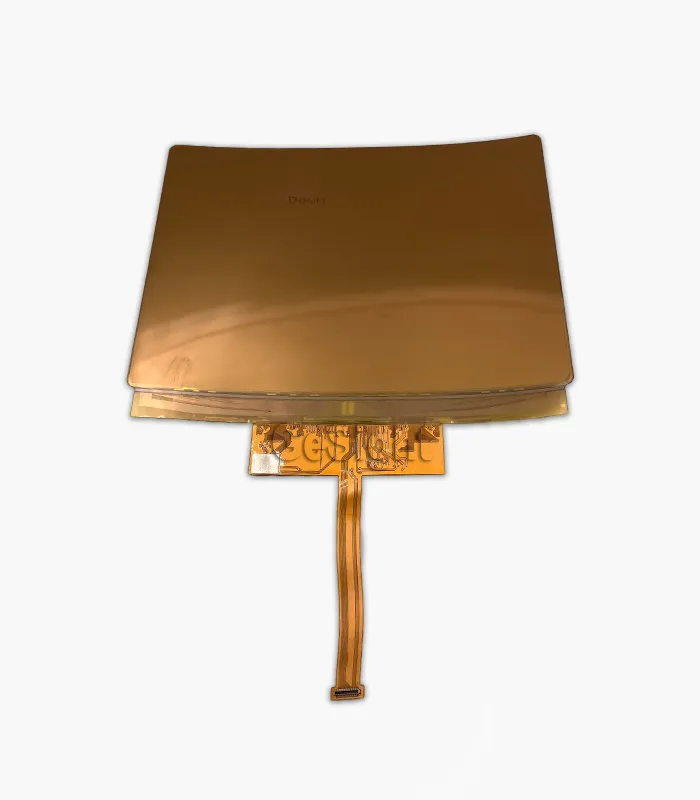

flexible AMOLED back view curved module FPC

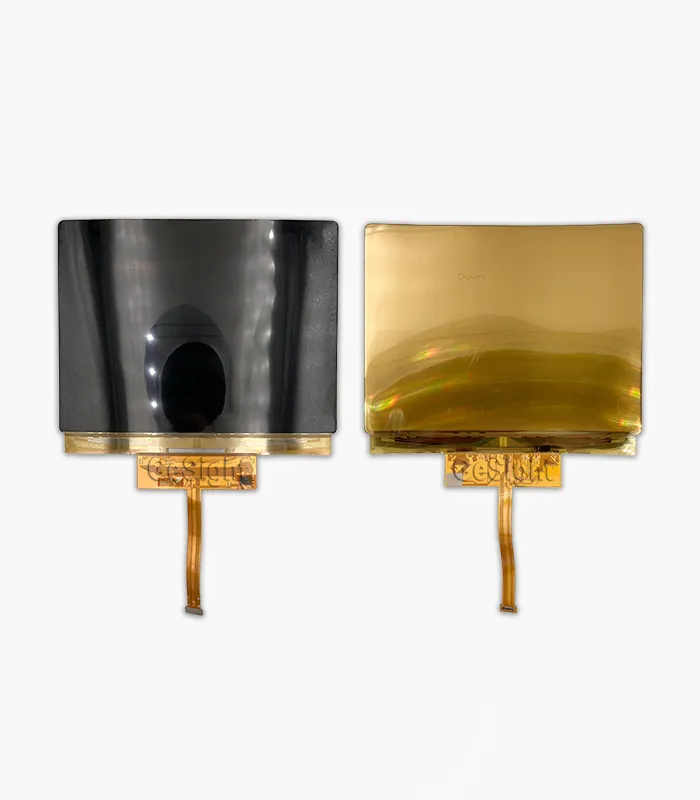

flexible AMOLED front and back view FPC

8.01-inch Flexible/Bendable AMOLED Display 2480×1860 MIPI

Tags: , , , , , ,

$200.70piece

Add to wishlist
Compare
16 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model:PF801FM2480F

The 8.01-inch Flexible/Bendable AMOLED Display delivers crisp, high-clarity visuals in a slim, lightweight form factor, featuring a 2480 × 1860 (2K+) resolution and a 4:3 aspect ratio for premium embedded interfaces. With Typ 500 cd/m² (before lamination) and Typ 430 nits (after lamination) brightness plus HBM up to 700 nits (typ.), it maintains strong readability across varied lighting. The module supports a MIPI (Video Mode) display interface and I2C touch communication, with a 60 Hz refresh rate and full viewing angle performance for consistent visibility. Its compact mechanical design includes a 165.688 × 125.416 mm outline (MOD W/O CG) and a 162.688 × 122.016 mm active area, enabling easier integration into curved or space-limited designs. Touch is supported with FT3881 (recommend) and a DOT touch sensor, while the display uses the RM69380 (recommend) driver IC in a COP package and an BM035-I40-C08 connector. Gesight supplies this module for dependable real-world use with a -30 to +70℃ operating range and -40°C to +80°C storage rating.

Application

Curved UI Devices | Portable Terminals | Embedded HMI | Demo & Evaluation Setups

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

flexible AMOLED outline drawing dimensions and active area
flexible AMOLED HDMI controller board demo setup

HDMI Controller Board for Fast Bring-Up & Reliable Video Test

For early-stage validation, an HDMI controller board provides a straightforward way to drive the 8.01-inch Flexible/Bendable AMOLED from common video sources. It helps teams quickly verify basic output stability, frame timing behavior, and overall image performance—so you can confirm the display link is healthy before investing time in deeper system integration. This is especially useful for demos, lab evaluations, and proof-of-concept setups where repeatable results matter.

In day-to-day debugging, the controller board also simplifies the workflow by reducing wiring complexity and making the test environment more consistent. Engineers can more easily reproduce issues, tune signal settings, and compare visual performance across different content scenes, which speeds up iteration when moving from evaluation to final host design.

Gesight provides HDMI Board options for this display to support efficient video input testing and faster prototyping workflows.

Flexible/Bendable Form Factor with Vivid Image Performance

Designed for curved integration, this 8.01-inch Flexible/Bendable AMOLED maintains a stable, clean image even when the panel is gently bent. The flexible structure enables more freedom in industrial design—supporting wrap-around layouts, curved UI surfaces, and space-saving assemblies where rigid panels feel limiting.

On the visual side, the 2480 × 1860 (2K+) resolution helps keep edges sharp and details crisp across the viewing area, while the AMOLED’s full viewing angle characteristic preserves clarity when viewed from different positions. With high brightness options up to 700 nits (HBM typ.), the screen stays punchy and readable for demo content and real-world scenes, making it a strong choice for premium interactive displays and compact, design-forward devices.

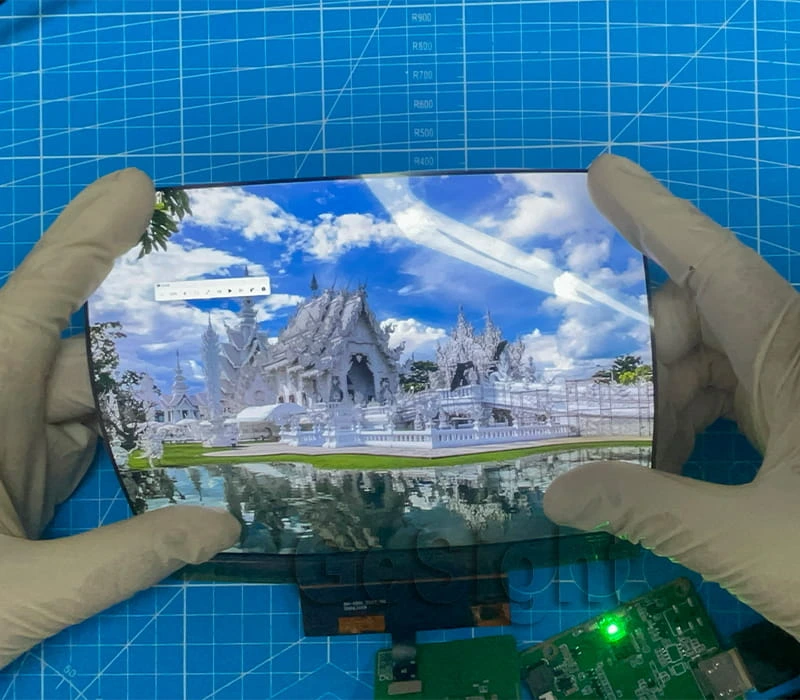

flexible bendable AMOLED screen bending demonstration
Specifications
Size

8.01 inch
Pixels

2480 × 1860 (2K+)
Interface

,

Brightness

Typ 430 nits (after lamination); Typ 500 cd/m² (before lamination); HBM Typ 700 nits
Manufacturer

Gesight
Display Type

Flexible OLED
Display Mode

AMOLED
Color Depth

Refresh Rate

60 Hz
Viewing Angle Range

Full viewing angle; TBD (Top/Bottom/Right/Left, CR > 10)
Outline L*W*H

165.688 × 125.416 × TBD mm
Active Area L*W

162.688 × 122.016 mm
Orientation

Supply Voltage

VDDIO 1.65–1.95 V; VCI 2.65–4.8 V; AVDD 6.0–8.0 V; DVDD 1.1–1.23 V; ELVDD 4.6–5.0 V; ELVSS -5.4–-1.4 V
Consumption

–
Operating Temperarure

−30 to +70 °C
Storage Temperature

−40 to +80 °C
Bezel Area (mm)

1.5 mm (L-side) / 1.7 mm (W-side)
Aspect Ratio

4:3
Connection Type

BM035-I40-C08
IC package

Driver IC: COP; Touch IC: FPC
Touch Panel

Pixel Pitch

0.0656 mm
Sunlight Readable

–
Model

PF801FM2480F
PPI ( pixels per inch )

387 PPI
Application

–
Pins Description
Pin No. Pin Name (Symbol)
1 ELVSS
2 TP_SDA
3 ELVSS
4 TP_INT
5 MTP_PWR
6 TP_SCL
7 ELVDD
8 TP_VDD
9 ELVDD
10 TP_IOVCC
11 AVDD
12 TP_RST (NC)
13 VDDI
14 GND
15 VCI
16 D2P
17 NC
18 D2N
19 AVDD_EN
20 NC
21 CLKN
22 NC
23 D0P
24 D0N
25 D1P
26 SWIRE
27 TE
28 GND
29 CLKP
30 GND
31 GND
32 NC
33 D1N
34 RST
35 NC
36 D3P
37 NC
38 D3N
39 NC
40 GND
Electrical Characteristics

Electrical Characteristics

Item Symbol Min. Max. Unit Remark
Digital Power Supply VDDIO 1.65 1.95 V Note1
Analog Power Supply VCI 2.65 4.8 V Note1
Power Supply For Analog Circuit AVDD 6.0 8.0 V —
Digital Power Supply DVDD 1.1 1.23 V —
ELVDD Power Supply ELVDD 4.6 5.0 V Note2
ELVSS Power Supply ELVSS -5.4 -1.4 V —
Operating Temperature (Ambient) Top Not specified Not specified ℃ Refer to RA test result
Storage Temperature (Ambient) Tstg Not specified Not specified ℃ —
Humidity Hstg Not specified Not specified %RH —



Backlight Specification

Item Specification
Backlight N/A (AMOLED, no backlight)
