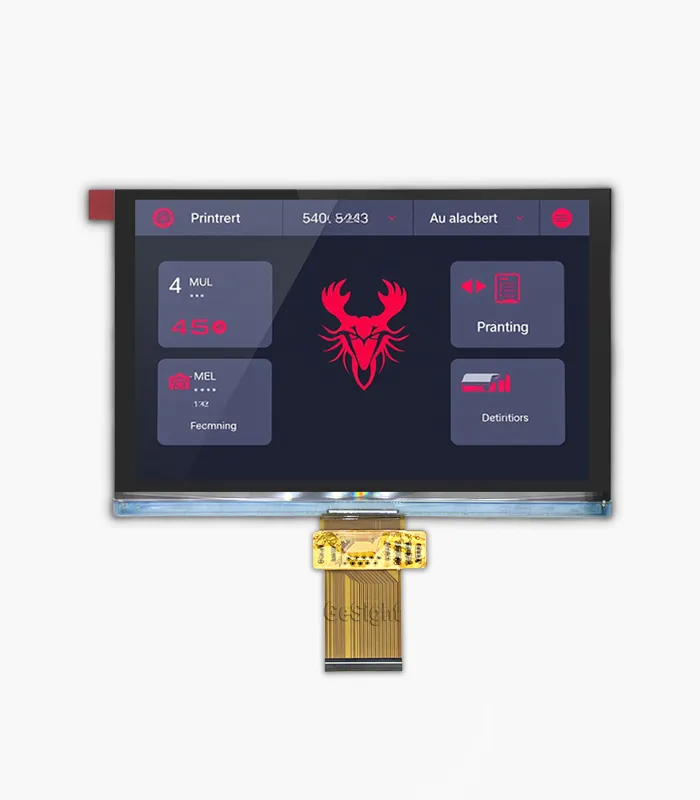

8.9 inch lcd 4k 3d industrial-printer screen

Click to enlarge

8.9 Inch 4k LCD Ultra High PPI for SLA 3D Printer

Name: 8.9 Inch 4k LCD Ultra High PPI for SLA 3D Printer
SKU: 811566-1-1-1-1-2
Availability: InStock

Tags: High brightness, Ultra-High Resolution, Wide Temperature

$150.00piece

Add to wishlist

Compare

15 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get Your Exclusive Quotation

Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: GS089FBB-N10-6HP0

8.9-inch LTPS TFT Display for 3D Printing

This 8.91-inch high-resolution display features a QHD resolution of 3840 × 2400 pixels with a fine 50 × 50 µm pixel pitch, delivering sharp, precise imagery ideal for 3D printing and other precision applications. Built with advanced LTPS TFT technology, it provides faster response times, lower power consumption, and high brightness and high contrast compared to traditional a-Si TFT screens. The display offers excellent optical performance with a high contrast ratio (≥300:1 @ 405nm), wide viewing angles (70–80°), and optimized transmittance (6.6%) for clear, readable visuals from multiple angles.

Gesight provides customized controller boards supporting HDMI and LVDS interfaces, allowing seamless integration with SBCs or industrial computer boards for a wide range of display solutions.

Application

3D Printer |High PPI| display | Public Equipment

Customized Options

FPC | Touch Panel | Cover Glass | Controller Board | Brightness

8.9 inch lcd 4k 3d printer high contrastdisplay

8.9 inch 3840x2400 3d printer Supports 3840×2400 resolution

Interfaces of 8.9 Inch High Brightness TFT LCD Display High-resolution

Gesight can provide a complete LCD Tester for the 8.9inch LCD display , ngineered for efficiency, the 8.91-inch LTPS LCD delivers ultra-low power consumption without compromising performance - perfect for battery-powered and energy-sensitive applications. Utilizing advanced Low-Temperature Poly-Silicon (LTPS) technology, this display reduces power draw by up to 30% compared to conventional a-Si TFT displays, while maintaining crisp QHD 3840×2400 resolution and 300:1 contrast ratio. Contact us today to receive your HDMI controller board and experience the superior clarity and brightness of our LCD displays.

If you need a customized HDMI controller board for this LCD, also feel free to contact us.

Interfaces of 8.9 Inch High Brightness TFT LCD Display Low power consumption

Interface Types

LVDS (Dual-Port): High-speed data transmission
SPI/I²C: Configuration control

Dual-port LVDS for high-resolution transmission
Industrial-grade ESD protection (anti-static handling required)

8.9 inch 3840x2400 3D low-power TFT display

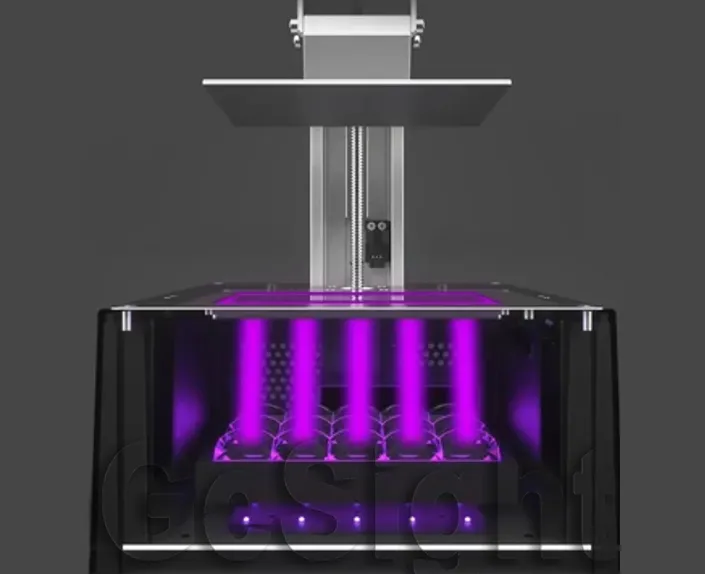

8.9 Inch Ultra High PPI LCD for SLA 3D Printer

The 8.9-inch ultra high PPI LCD is designed specifically for SLA 3D printers, delivering exceptional detail and precision for resin printing. With ultra-fine pixel density, it ensures smooth edges, crisp layers, and high-resolution output for professional-grade 3D models. Featuring excellent light transmittance, uniform backlight, and long service life, this LCD screen enhances print speed and accuracy while reducing maintenance downtime. Its stable performance and compatibility with various SLA 3D printer models.

Specifications

Size	8.9 inch
Pixels	3840(H) × 2400(V)
Interface	LVDS
Manufacturer	Gesight
Display Type	TFT-LCD
Display Mode	Normally Black
Color Depth	Monochrome
Refresh Rate	40hz
Viewing Angle Range	Horizontal: 80° (typ.), Vertical: 80° (typ.)
Outline LWH	202.0 × 133.0mm
Active Area L*W	192.0 × 120.0 mm
Orientation	Landscape
Build-in Touch IC	Not included
Supply Voltage	IOVCC: 3.3V, VSP: +6V, VSN: -6V
Operating Temperarure	–20°C ~ 70°C
Storage Temperature	–20°C ~ 80°C
Bezel Area (mm)	L/R: 5.0, U: 3.0, D: 4.0+6.0
Aspect Ratio	16:10 (H:V)
Connection Type	FPC, 60-pin
IC package	ST5892B
Touch Panel	Need to make
Sunlight Readable	NO
Model	GS089FBB-N10-6HP0
PPI ( pixels per inch )	498PPI

Pins Description

Pin No.	Pin Name	Description
1	GND	Ground
2	GND	Ground
3	NC	Not connect
4	VCC	Power +3.3V
5	VCC	Power +3.3V
6	NC	Not connect
7	STBYB	Standby mode
8	RESET	Reset pin, low active
9	VSP	Positive LC driver supply (+6V)
10	VSN	Negative LC driver supply (−6V)
11	UD	Gate output shift vertical direction select
12	LR	Source output shift horizontal direction select
13	GND	Ground
14	CS	Chip select signal for SPI interface
15	SCL	Clock signal for SPI interface
16	SDA	Serial address/data I/O for SPI
17	NC	Not connect
18	NC	Not connect
19	NC	Not connect
20	ROM_RLD	MTP reload per 30 frames (No connect)
21	VDD(MTP)	Power supply for MTP circuit
22	NC	Not connect
23	I2C_SCL	Not connect
24	I2C_SDA	Ground
25	NC	Not connect
26	IIC/SPI_SET	Serial interface selection
27	NC	Not connect
28	GND	Ground
29	OD0N	− LVDS differential data 0 (ODD)
30	OD0P	+ LVDS differential data 0 (ODD)
31	GND	Ground
32	OD1N	− LVDS differential data 1 (ODD)
33	OD1P	+ LVDS differential data 1 (ODD)
34	GND	Ground
35	OCLKN	− LVDS differential clock (ODD)
36	OCLKP	+ LVDS differential clock (ODD)
37	GND	Ground
38	OD2N	− LVDS differential data 2 (ODD)
39	OD2P	+ LVDS differential data 2 (ODD)
40	GND	Ground
41	OD3N	− LVDS differential data 3 (ODD)
42	OD3P	+ LVDS differential data 3 (ODD)
43	GND	Ground
44	ED0N	− LVDS differential data 0 (EVEN)
45	ED0P	+ LVDS differential data 0 (EVEN)
46	GND	Ground
47	ED1N	− LVDS differential data 1 (EVEN)
48	ED1P	+ LVDS differential data 1 (EVEN)
49	GND	Ground
50	ECLKN	− LVDS differential clock (EVEN)
51	ECLKP	+ LVDS differential clock (EVEN)
52	GND	Ground
53	ED2N	− LVDS differential data 2 (EVEN)
54	ED2P	+ LVDS differential data 2 (EVEN)
55	GND	Ground
56	ED3N	− LVDS differential data 3 (EVEN)
57	ED3P	+ LVDS differential data 3 (EVEN)
58	GND	Ground
59	GND	Ground
60	GND	Ground

Electrical Characteristics

Parameter	Symbol	Value	Unit	Remarks
TFT Gate ON Voltage	VGH	+8	V
TFT Gate OFF Voltage	VGL	-8	V	Must fluctuate with same phase as VCOM
TFT Common Electrode Voltage	VCOM	-0.42	V	Adjustable for optimal display quality
I/O Supply Voltage	IOVCC	3.3	V
LC Driver Supply Voltage	VSP	6	V	Positive
LC Driver Supply Voltage	VSN	-6	V	Negative
Frame Frequency	f_Frame	40	Hz

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit	Remarks
LC Operating Voltage	VOP	–	5.0	V	Ta = 25 ± 2°C
Operating Temperature (Humidity)	TOP	-20	+70	°C
Storage Temperature (Humidity)	TST	-20	+80	°C
Note: LC driving voltage varies with environmental temperature.

See TFT-LCD Collection

From 1.09 inch to 32 inch, all the size you need !

View Collection

FAQ

Where can I buy this display？

If you just need a few samples, it`s better to directly on our Aliexpress store, we are 5 stars feedback supplier with 100% Honesty. (The buy link is on the right of the product image)
For bulk orders, it`s better to contact us and get a better price.

I don`t know which display is suitable for my project

Different displays have different characteristics, just tell Gesight Display your application, and operating environment, Gesight Display will suggest a suitable display for you.

How can I test the display screen?

Gesight Display provide HDMI/Type-C controller board or individual demo kit to test.
The pictures of demo kit can be changed by yourself.

How can I drive the display panel?

Gesight Display will provide necessary specifications for most LCD/OLED on sale, including,
Display Datasheet
Display Drawing
IC Datasheet
Circuit schematic
For most electronics engineers, our specifications are enough to run the display, and we will provide some assistance.
But Gesight Display is not a school, if customers don`t know the basic knowledge to design circuit boards, we suggest using our controller board to drive the display.

Where can I get the cover glass or touch screen for this display panel?

First, you need to check whether this display has On-cell or In-cell touch panel, if has, it only needs to add a cover glass on it. If not, it needs an external touch panel.
(On-cell and In-cell are integrated PCAP touch panels on the display screen)
Because the shape of the cover glass depends on the design of the clients, to avoid infringement of appearance, most of the developers need different customized touch panels.
Gesight Display can provide a customized touch screen with a low cost of tooling charge.

How do Gesight Display ship display panels?

1. UPS/Fedex/DHL/TNT, the best choice for most clients, 3~7 days to arrive.
2. Aliexpress standard ship, this way is cheap and slow, usually take more than 10 days. Only for samples.
3. For Russian clients, EMS or Aliexpress shipment is better.
4. Any designated logistics are acceptable

What`s the quality standard of Gesight Display`s display panels?

Most display panels are from giant manufacturers such as BOE, Sharp, LG, EDO, AUO, etc. They have already tested with strict standards.
For OEM products from Panox Display factory, please check the quality test standards.

What`s the lifetime of these display panels?

The lifetime is different on different images, check the lifetime on datasheet to study it.

Can I connect this display to Raspberry Pi?

If your Raspberry Pi can support the interface of the display panel, and you know how to program on Raspberry Pi, you can connect to our display.
If you don`t know or don`t want to write a display program on Raspberry Pi, it`s better to get an HDMI controller board from us, and Panox Display will send a config.txt file for reference.

How many days does it take to develop a project?

What is the budget for the project?

Can design edits be made during design time?

Free convertor board and Connectors

Fast Shipping

Most of our clients are manufacturers purchasing our displays for their applications, who are willing to get samples as soon as possible.

Different products collocations have different package, please confirm the shipping cost with us when place an order.

(4~6 days for most countries and area)

Specification

Panox Display offers the following specifications for most LCD/OLED products:

Display datasheet
Mechanical drawing
IC datasheet
Circuit schematic

TFT-LCD: More Choices for Every Need

Unlike OLED displays, which often have only a few models for each size, the TFT LCD screen market offers a wide variety. After many years of continuous production by Chinese OEM manufacturers, there are countless TFT LCD display options for almost every size, with different resolutions, brightness levels, and specifications. Whether you need high brightness for outdoor use, fine resolution for industrial applications, or cost-effective solutions for consumer products, a TFT LCD module is available to meet your requirements. and vivid image, and consistent display from any angle.

Structure of a TFT-LCD

A TFT-LCD display is made of multiple precise layers, each serving a unique function. Starting from the viewing side, the polarizer controls light polarization, while the first glass substrate supports the color filter layer that creates red, green, and blue subpixels. Beneath this is the transparent common electrode and the transparent display electrode, which work together to control light transmission.

The active layer contains the thin-film transistor (TFT) and storage capacitor, connected through the gate (row) line and source (column) line to drive each pixel. A second glass substrate supports this circuit. Behind the panel, a diffuser spreads light evenly, while the backlight provides the illumination necessary for the display to be visible. Finally, another polarizer fine-tunes light before it exits the screen, ensuring clear, bright images.

By combining these layers into a single TFT-LCD module, manufacturers achieve sharp resolution, accurate colors, and consistent brightness for a wide range of applications.
