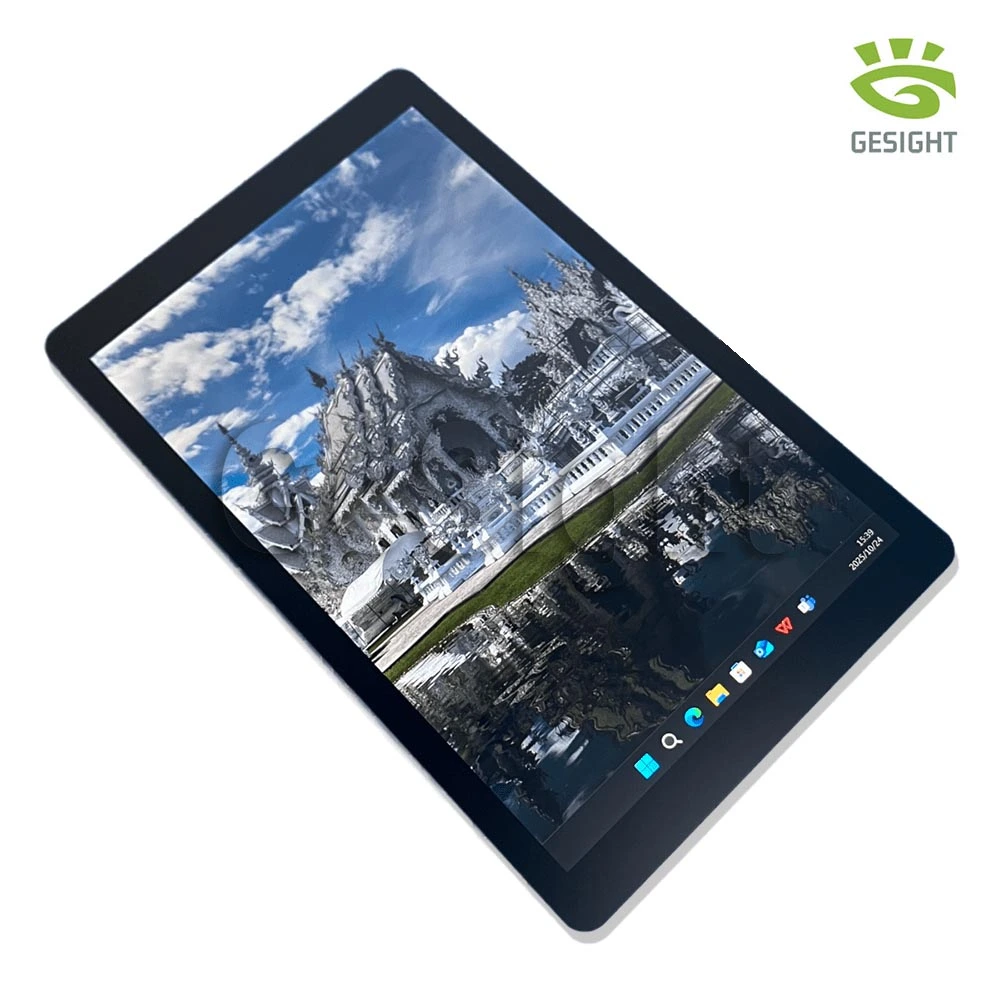

PL801WXGAM 8-inch 800×1280 MIPI TFT LCD module with the screen powered on (landscape demo).

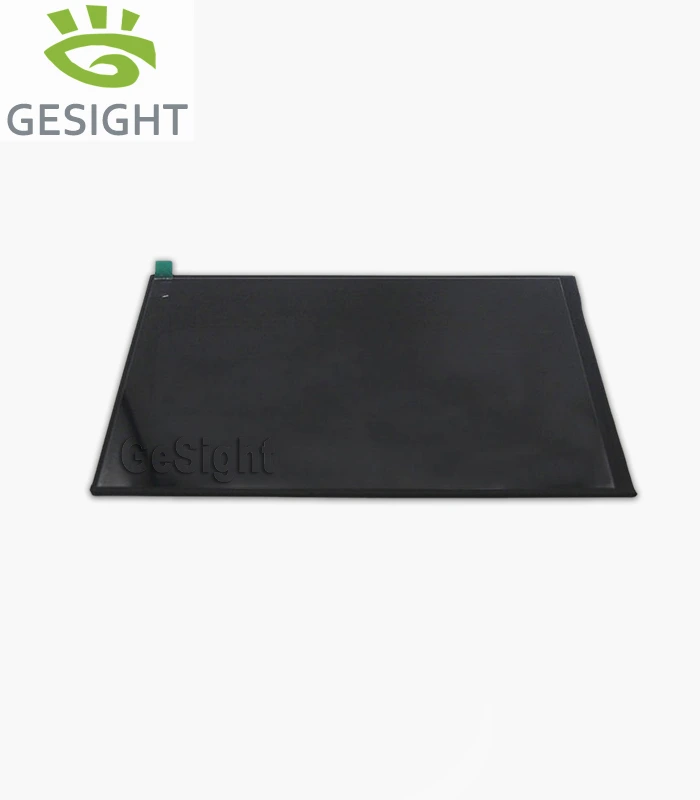

Front view of PL801WXGAM 8-inch 800×1280 MIPI TFT LCD module (screen off).

Click to enlarge

8.0-inch TFT LCD 800×1280 MIPI Display

Name: 8.0-inch TFT LCD 800×1280 MIPI Display
SKU: 811566-1-1-1-6-1-2
Availability: InStock

Tags: High ppi, Industrial Panel, MIPI Interface, Tablet Display, Vivid Colors, Wide viewing angle

$32.72piece

Add to wishlist

Compare

18 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get Your Exclusive Quotation

Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: PL801WXGAM

The 8.0-inch TFT-LCD Module delivers crisp, vibrant visuals with an 800×1280 resolution and 16.7M colors, making it a reliable choice for slim embedded displays and tablet-style interfaces. Featuring a MIPI interface and a normally black transmissive panel, it provides stable image performance with wide viewing angles (typ. 85°) and typical brightness of 250 cd/m². Its ultra-slim 2.6 mm outline helps simplify integration where space is limited, while the -10 to +60°C operating temperature range supports dependable use in real-world environments.

Application

Embedded HMI | Portable Instruments | Industrial Control Panels | Tablet Displays

Customized Options

FPC | Touch Panel | Cover Glass | Controller Board | Brightness

Mechanical drawing of PL801WXGAM 8-inch 800×1280 MIPI TFT LCD module showing outline and active area.

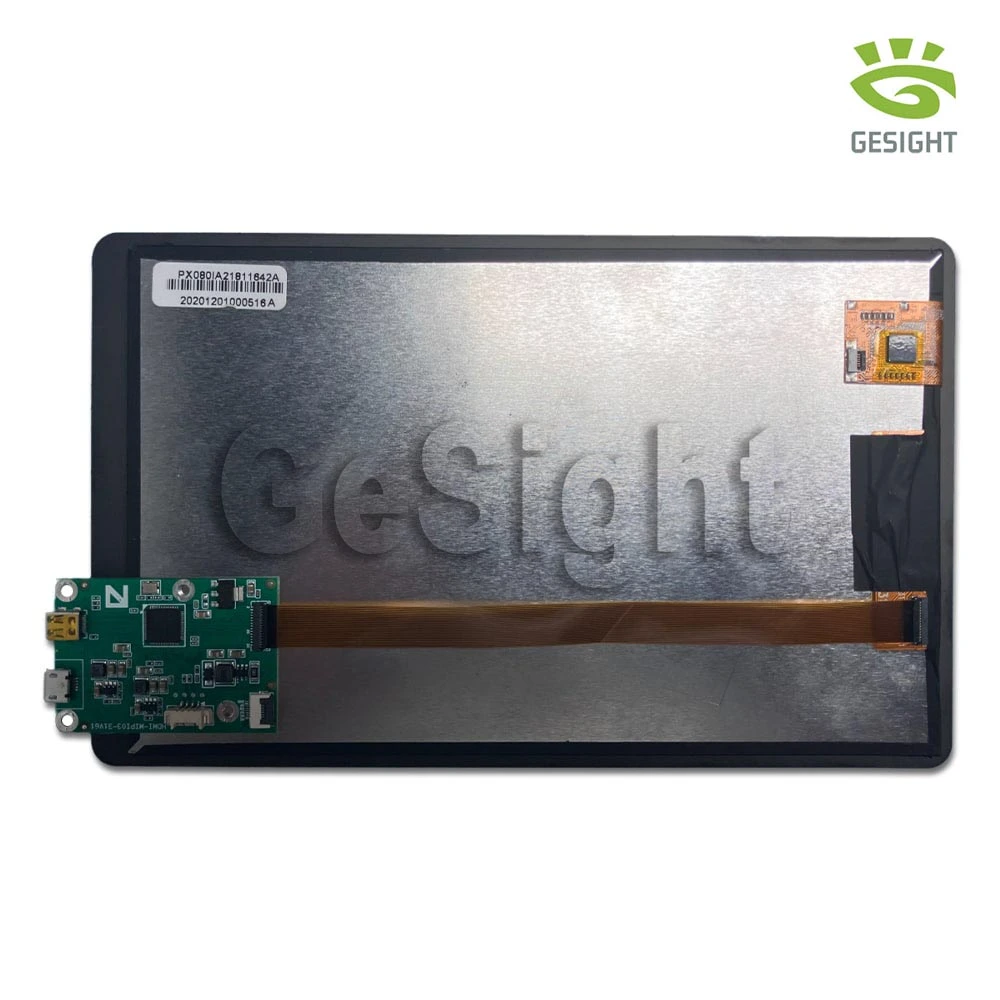

Controller board for an 8-inch MIPI TFT LCD module with a 31-pin FPC connector.

HDMI-to-MIPI Controller Board for 8.0" 800×1280 TFT-LCD Evaluation

Gesight provides an HDMI-to-MIPI controller board to help engineers quickly evaluate and bring up the PL801WXGAM 8.0-inch 800×1280 MIPI TFT-LCD module. Feed video from common HDMI sources and drive the panel through its MIPI interface via the module’s 31-pin FPC connection, enabling fast UI demos, signal verification, and prototype validation.

Powered by USB Type-C, the board simplifies lab setup and on-site testing with a clean, single-cable power solution—ideal for rapid development and iteration on embedded display projects.

If your project needs a different board outline, connector placement, or a tailored interface bridge, Gesight can support custom controller board solutions to better match your mechanical stack-up and integration requirements.

Vivid Color Performance for a Premium UI Look

Engineered for UI-heavy products, this 8.0-inch display delivers a more vivid, polished on-screen feel—with clean color separation, smooth gradient transitions, and clear edge definition that helps icons, text, and UI elements look crisp and intentional rather than “muddy” or flat.

For image-rich interfaces, it renders natural-looking tones and fine details more confidently, so photos, maps, charts, and wallpapers feel more lifelike and less washed out. This is especially helpful when your product’s perceived quality depends on the display’s visual impact—whether it’s a dashboard-style layout, a tablet-style menu system, or a modern embedded GUI.

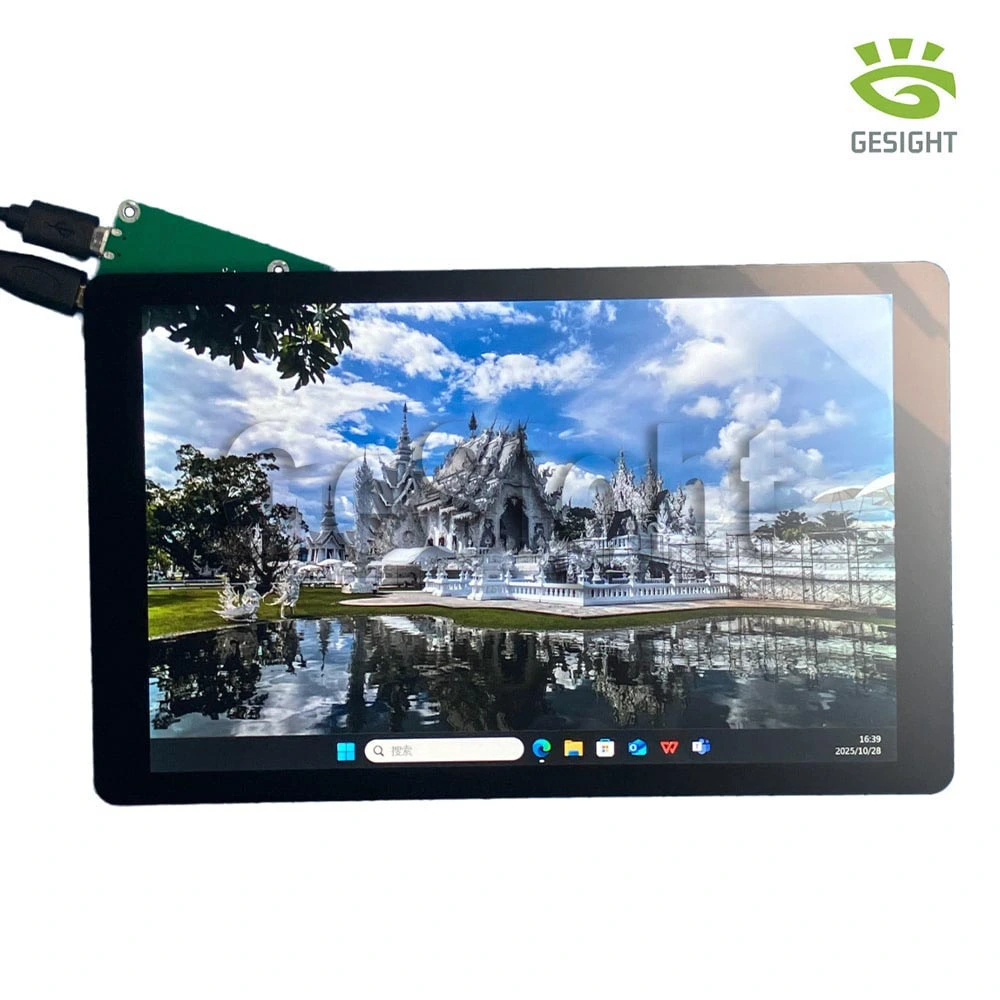

PL801WXGAM 8-inch 800×1280 MIPI TFT LCD module running a demo image while connected to an external board.

Specifications

Size	8 inch
Pixels	800(RGB) × 1280 dots
Interface	MIPI DSI
Brightness	Typ 250 cd/m² (Min 220)
Manufacturer	Gesight
Display Type	TFT-LCD
Display Mode	Normally Black
Color Depth	16.7M colors
Refresh Rate	60 Hz (Frame rate condition in DC characteristics note)
Viewing Angle Range	L/R/U/D：Min 80°, Typ 85°（CR=10）
Outline LWH	114.6 × 184.1 × 2.6 mm
Active Area L*W	107.64(H) × 172.22(V) mm
Orientation	Landscape
Supply Voltage	VCC(analog): 3.0–3.6V (Typ 3.3V)；VDDIO(logic): 1.7–3.0V (Typ 1.8V)
Consumption	–
Operating Temperarure	-10 to +60 ℃
Storage Temperature	-20 to +70 ℃
Bezel Area (mm)	Bezel Area (mm): L/R: 3.48 mm each; T/B: 5.94 mm each
Aspect Ratio	16:10
Connection Type	31-pin FPC (pinout: 1–31)
IC package	–
Touch Panel	Need to make
Pixel Pitch	0.1506(H) × 0.1432(V) mm
Sunlight Readable	–
Model	PL801WXGAM
PPI ( pixels per inch )	≈188.68 PPI
Application	–

Pins Description

Pin	Pin Name	Description
1	LED+	Power supply for LED[Anode]
2	LED+	Power supply for LED[Anode]
3	LED+	Power supply for LED[Anode]
4	LEDK	Not Connect
5	LED-	Power supply for LED[Cathode]
6	LED-	Power supply for LED[Cathode]
7	LED-	Power supply for LED[Cathode]
8	LED-	Power supply for LED[Cathode]
9	NC	Ground
10	NC	Ground
11	MIPI_2P	MIPI data positive signal(2P)
12	MIPI_2N	MIPI data negative signal(2N)
13	GND	Ground
14	MIPI_1P	MIPI data positive signal(1P)
15	MIPI_1N	MIPI data positive signal(1N)
16	GND	Ground
17	MIPI_CLKP	MIPI CLK positive signal(CLKP)
18	MIPI_CLKN	MIPI CLK positive signal(CLKN)
19	GND	Ground
20	MIPI_0P	MIPI data positive signal(0P)
21	MIPI_0N	MIPI data positive signal(0N)
22	GND	Ground
23	MIPI_3P	MIPI data positive signal(3P)
24	MIPI_3N	MIPI data positive signal(3N)
25	GND	Ground
26	VDDIO	Logic power 1.8V
27	RESET	Reset Pin
28	GND	Ground
29	VDDIO	Logic power 1.8V
30	VDD	Logic power 3.3V
31	VDD	Logic power 3.3V

Electrical Characteristics

Section	Item	Symbol	Min	Typ	Max	Unit	Remark
Absolute Maximum Ratings	Supply Voltage for Logic circuit	VDDIO	1.7	—	3.0	V	—
Absolute Maximum Ratings	Supply Voltage for analog circuit	Vcc	3.0	—	3.6	V	—
DC Electrical (Power Spec)	VCI	Vcc	3.0	3.3	3.6	V	—
DC Electrical (Power Spec)	VDD3	Iovcc	1.7	1.8	3.0	V	—
DC Electrical (Power Spec)	TFT Gate ON Voltage	Pixel turn on voltage	14	15	16	V	—
DC Electrical (Power Spec)	TFT Gate OFF Voltage	Pixel turn off voltage	-14	-13	-12	V	—
DC Electrical (Power Spec)	VSP	Negative AVEE voltage	4.8	5	6	V	—
DC Electrical (Power Spec)	VSN	Postive AVDD voltage	-6	-5	-4.8	V	—

Backlight Specification

Item	Symbol	Min	Typ	Max	Unit	Remark
Forward supply Voltage	Vf	8.4	9.6	9.9	V
Forward supply Current	If	-	140	-	mA
LCM Luminance	Lv	220	250	-	cd/m²	Ib = 140mA
Uniformity	/	75	80	-	%
